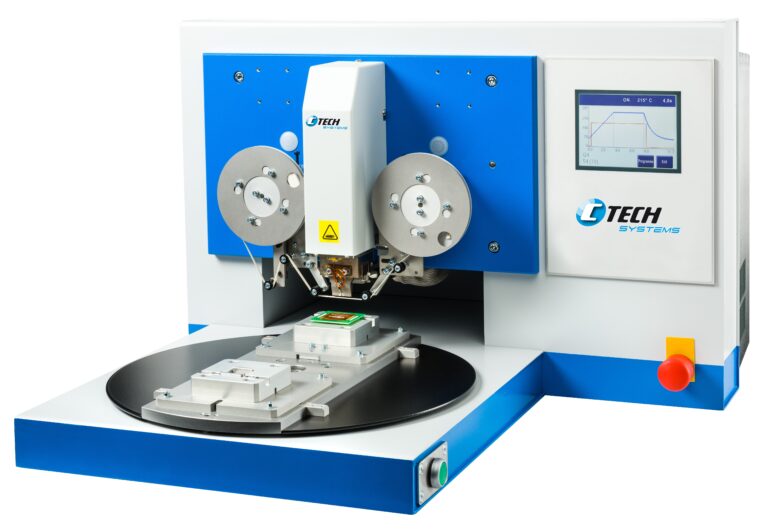

C-Turn handles the product in pneumatic turning unit with a diameter of 410 mm, with a fixture size up to 160 x 160 mm.

C-Tech Systems Desktop Series is a product range for Heat-Seal Bonding, ACF Laminating process applications and Reflow Soldering. All kind LCD, Flex foil and PCB connections can be made using these systems. C-Tech Systems has the most intelligent systems designs, very rigid base constructions with exchangeable soldering/bonding heads which minimizes your production down time when switching over to another soldering/bonding head. But more revolutionary are the exchangeable product movement modules! They make it possible for you to upgrade your C-Prime to a C-Slide or C-Turn in minutes. You don’t need to buy a complete new desktop, only a product movement module which will be a considerable cost benefit for you. C-Turn handles the product in pneumatic turning unit with a diameter of 410 mm, with a fixture size up to 160 x 160 mm.

Features

  • Most stiff frame construction
  • Smartest Hot Bar exchange design
  • Exchangeable product handling and process modules
  • Controller for time, temperature, force and joint penetration
  • User-friendly touchscreen

Options

  • Soldering/Bonding Head Modules in different force ranges for optimal process adjustment
  • Interposer Module for soldering and bonding processes
  • Product Alignment for fine pitch applications
  • Quality control modules, e.g. automatic force control, joint penetration depth measurement, multiple thermocouples

Applications

  • Heat-Seal Bonding
  • ACF Laminating
  • Reflow Soldering
  • Heat Staking
  • LCD, Flex foil and PCB connections
